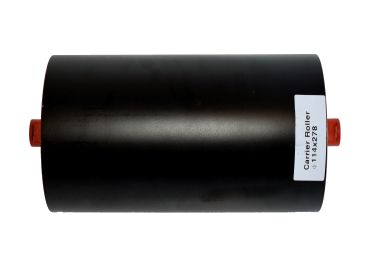

Carrier Roller
Our carrier rollers are a heavy duty roller with a shell thickness of 3.5mm , a three stage sealing system with a rock guard end cap, a labyrinth seal and a sealed and lubricated for life bearing. Our carrier rollers have been tested to perform problem free for 25,000 hours. You pay a little more, but you buy less often.
![](images/resource/CarrierRoller1.jpg)

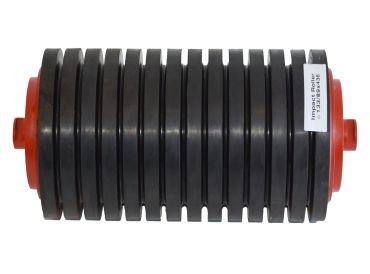

Impact Roller
Our impact rollers are a heavy duty roller with 70 Duro rubber pads, a three stage sealing system a rock guard end cap, a labyrinth seal and a sealed and lubricated for life bearing. Our impact rollers have been tested to perform problem free for 25,000 hours. You pay a little more, but you buy less often.
![](images/resource/ImpactRoller.jpg)

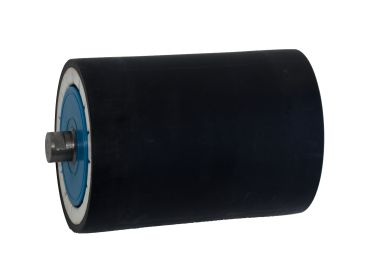

Polymer Carrier Roller
Our polymer carrier rollers are a heavy duty roller with a shell thickness of 6.0mm , a two stage sealing system with a labyrinth seal and a sealed and lubricated for life bearing. Our polymer carrier rollers have been tested to perform problem free for 25,000 hours. You pay a little more, but you buy less often.
![](images/resource/PolymerCarrierRoller.jpg)

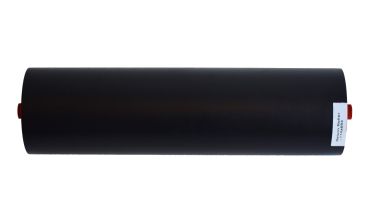

Return Roller
Our return rollers are a heavy duty roller with a shell thickness of 3.5mm , a three stage sealing system with a rock guard end cap, a labyrinth seal and a sealed and lubricated for life bearing. Our return rollers have been tested to perform problem free for 25,000 hours. You pay a little more, but you buy less often.
![](images/resource/ReturnRoller.jpg)

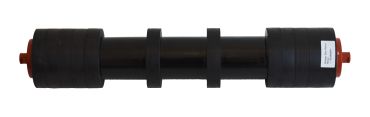

Rubber Disk Return Roller
Our rubber disc return rollers are a heavy duty roller with 70 Duro rubber pads, a three stage sealing system a rock guard end cap, a labyrinth seal and a sealed and lubricated for life bearing. Our rubber disc return rollers have been tested to perform problem free for 25,000 hours. You pay a little more, but you buy less often.
![](images/resource/RubberDiskReturn.jpg)

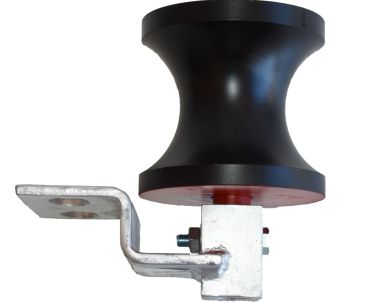

Side Guide Roller With Bracket
Our side guide rollers – belt aligners come in three options: flat faced with a standard shaft, flat faced with a threaded shaft including washer and lock nut or the apple core type. All of these rollers can be supplied with brackets which makes mounting onto a conveyor a simple task.
![](images/resource/SideGuideRollerWithBracket.jpg)

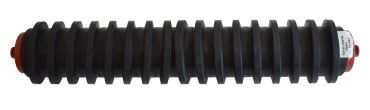

Spiral Return Roller
Our spiral return rollers are a heavy duty roller with 70 Duro rubber pads designed to clean the underside of a belt, they have a three stage sealing system: a rock guard end cap, a labyrinth seal and a sealed and lubricated for life bearing. Our spiral return rollers have been tested to perform problem free for 25,000 hours. You pay a little more, but you buy less often.
![](images/resource/SpiralReturnRoller.jpg)

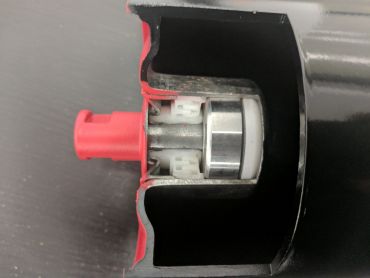

Three Stage Sealing For Our Rollers
![](images/resource/ThreeStageSealingForOurRollers.jpg)

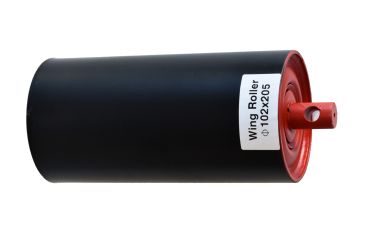

Wing Rollers
![](images/resource/WingRoller.jpg)

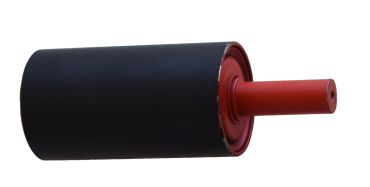

Flat Side Guide Roller
![](images/resource/FlatSideGuideRoller.jpg)

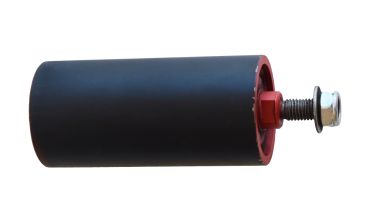

Flat Side Guide Threaded Shaft
![](images/resource/FlatSideGuideThreadedShaft.jpg)
